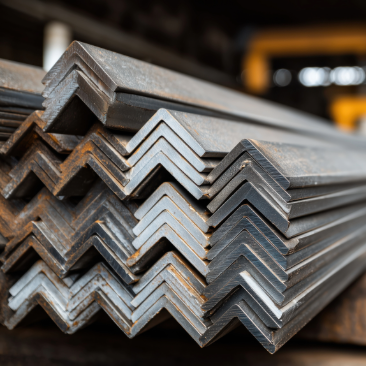

S235J2 Angle bar steel

Standard:S235J2/S235J0/S355J0/S355J2/A283/A516/A572/A36/SS400
Shape:Equal and Unequal
thickness:3-30mm
width:20-200mm

Contact us
Product Description
Product Name Angle steel Bar
Standard S235J2/S235J0/S355J0/S355J2/A283/A516/A572/A36/SS400
Shape Equal and Unequal
thickness 3-30mm
width 20-200mm
length 6m,9m,12m
Surface treatment Black/Galvanized
Technique Hot Rolled
Application Construction,Structure
EQUAL ANGLE (A*T)
Size(mm) Theoratical Weight (kg/m) Size(mm) Theoratical Weight (kg/m) Size(mm) Theoratical Weight (kg/m)
25*3 1. 134 75*7 7.976 110*14 22.809
25*4 1. 459 75*8 9.03 125*8 15.504
30*3 1. 373 75*10 11. 089 125*10 19. 133
30*4 1. 786 80*6 7.376 125*12 22.696
40*3 1. 852 80*7 8.525 125*14 26. 193
40*4 2.422 80*8 9.658 140*10 21. 488
40*5 2.976 80*10 11. 874 140*12 25.522
50*4 3.059 90*6 8.35 140*14 29.49
50*5 3.77 90*7 9.658 140*16 35.393
50*6 4.465 90*8 10.946 160*10 24.729
60*5 4.52 90*10 13.476 160*12 29.391
60*6 5.42 90*12 15.94 160*14 33.987
63*5 4.822 100*6 9.366 160*16 38.518
63*6 5.721 100*7 10.83 180*12 33. 159
63*8 7.496 100*8 12.276 180*14 38.518
63*10 9. 151 100*10 15. 12 180*16 43.542
70*5 5.397 100*12 20.611 180*18 48.634
70*6 6.406 100*16 23.257 200*14 42.894
70*7 7.398 110*7 11. 928 200*16 48.68
70*8 8.373 110*8 13.532 200*18 54.401
75*5 5.81 8 110*10 16.69 200*20 60.056
75*6 6.905 110*12 19.782
