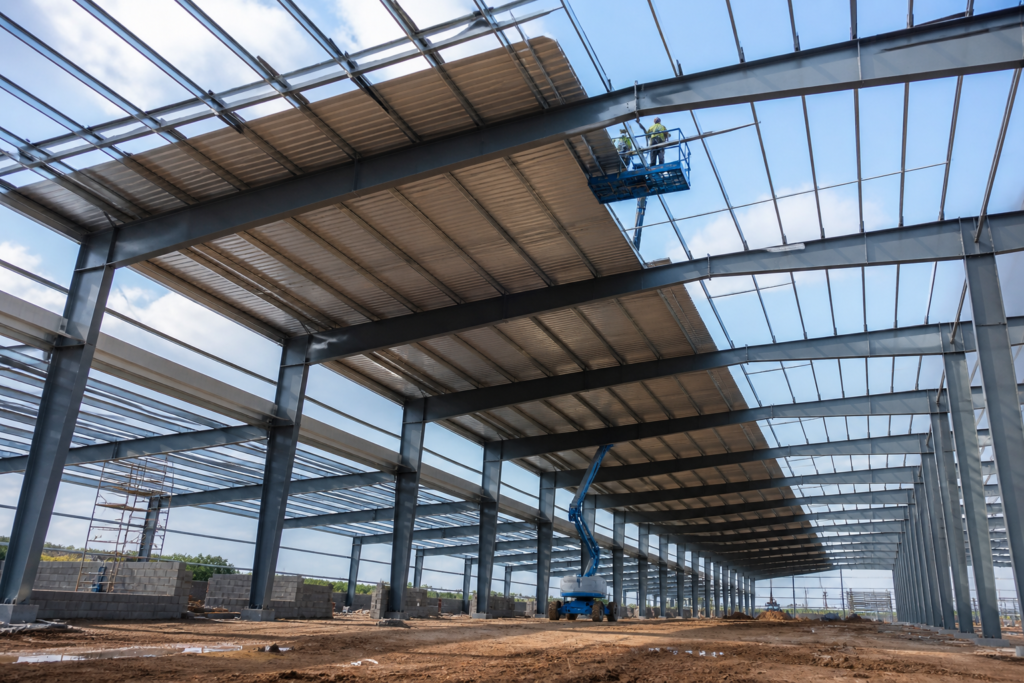

Pre-Engineered Steel Buildings (PEB): Design, Components & Advantages
- What Is a Pre-Engineered Building?
A Pre-Engineered Building (PEB) is a complete structural steel building system designed, manufactured, and supplied by a specialist manufacturer as a fully integrated package. Unlike conventionally designed and fabricated steel buildings, where structural engineers design bespoke frames and fabricators produce unique components, PEB systems use standardised design software and optimised tapered section primary framing that reduces steel consumption by 20–35% compared to conventional designs. The result is a faster, more economical building system that has revolutionised industrial and commercial construction globally.
- Primary Framing: Rigid Frames
The primary structural system of a PEB is a series of tapered rigid frames — portal frames with web-depth varying continuously from the column base to the ridge — that span the building width. The variable depth profile concentrates material where bending moments are highest (at the eaves and ridge joints) and removes it where moments are low (at mid-span), dramatically improving structural efficiency.
Primary frames are fabricated from welded built-up sections — top and bottom flanges cut from high-strength steel plate (typically Grade S355 or IS 2062 E350) and welded to a web plate using automated welding. Flange widths of 200–400mm and web depths of 300–1200mm are typical, depending on span and load. Frames are designed using dedicated PEB design software that optimises section dimensions at every point along the frame.
- Secondary Framing: Purlins and Girts
Secondary structural members — roof purlins spanning between primary frames in the roof plane, and wall girts spanning between primary frame columns in the wall plane — support the roof and wall cladding and transfer wind and gravity loads to the primary frames. Cold-formed Z-sections and C-sections of 1.5–3.5mm galvanized steel strip are the standard secondary framing members, offering high strength-to-weight ratios from Grade S280 or S350 steel.
Purlin spacing is typically 1.5–2.0m for standard roof panels, reducing to 1.0–1.5m for heavy-duty roofing or high-load zones near the roof ridge. Bridging angles between adjacent purlins provide lateral stability against buckling of the thin-walled sections. Eave and ridge purlin details are critical connection zones that receive careful attention in PEB engineering.
- Cladding Systems
Roof and wall cladding panels are the waterproof envelope of the PEB, and their quality and specification are critical to the building’s long-term performance. Profiled metal roof sheets — typically single-skin trapezoidal or standing seam panels in PPGI (pre-painted galvanized steel) or PPGL (pre-painted galvalume steel) — span between purlins and provide weather exclusion. Insulated sandwich panels, incorporating rigid foam insulation bonded between inner and outer metal skins, deliver significantly improved thermal insulation for temperature-controlled facilities.
Common roof sheet profiles include 25/209 corrugated (nominal corrugation depth 25mm, pitch 209mm) and 38/150 trapezoidal, with base metal thickness from 0.45mm to 0.70mm and zinc coating weights of Z200 to Z275 for hot-dip galvanized substrate.
- Applications and Advantages
PEB systems are widely used for warehouses, logistics centres, manufacturing facilities, aircraft hangars, sports halls, and retail buildings where large clear-span, column-free space is required. Clear spans of 30–60m are routinely achievable, with 100m+ spans using three-hinged arch or space frame systems for special applications.
The advantages of PEB over conventional construction include 30–40% faster erection time from pre-engineered and pre-cut components; 20–35% lower steel weight from optimised tapered sections; single-source supply responsibility; factory quality control on all fabricated components; and flexibility for future expansion by adding bays. Global Steel Industries supplies primary frame steel plates, cold-formed secondary sections, and PPGI/PPGL cladding for PEB projects.
- Conclusion
Pre-engineered steel buildings represent the most economical and rapidly-erected solution for industrial and commercial construction. Global Steel Industries supplies the complete range of PEB steel materials to specified grades and dimensions. Contact us at globalsteelind.com to discuss your building project.
