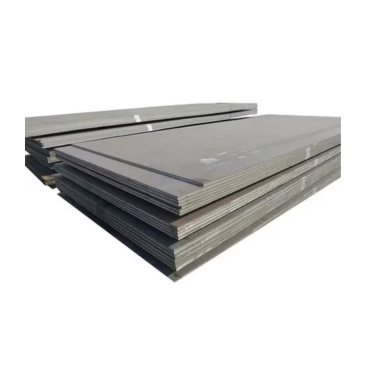

NM400 500 Wear Resistant Steel Plate

NM500 is an abrasion resistant plate with a hardness of 500 HBW, intended for applications where demands are imposed on abrasion resistance in combination with good cold bending properties. NM500 offers very good weldability.

Product introduction

Abrasion resistant steel-which is also known as (AR steel) wear resistant steel, is developed to have longer service life than mild steel. Abrasion resistant steel is widely used in underground mines, cement industry, road construction, mining and open-pit mining and metallurgical industries and manufacturing other wear-resistant parts.

NM500 Wear Resistant Steel Plate Looking forward to establish a good relationship long tern bisiness with you!

Technical data

NM500 Wear Resistant Steel Plate

Wear Resistant Steel Plate Chemical Composition and Mechanical Properties
Chemical Composition(Max)
Material	C	Si	Mn		P	S		Cr	Ni	Mo	Ti	Bt	Als	CEV
NM300	0.23	0.70	1.60		0.025	0.015		0.70	0.50	0.40	0.050	0.0005-0.0006	0.010	0.45
NM360	0.25	0.70	1.60		0.025	0.015		0.80	0.50	0.50	0.050	0.0005-0.0006	0.010	0.48
NM400	0.30	0.70	1.60		0.025	0.010		1.00	0.70	0.50	0.050	0.0005-0.0006	0.010	0.55
NM450	0.35	0.70	1.70		0.025	0.010		1.10	0.80	0.55	0.050	0.0005-0.0006	0.010	0.60
NM500	0.38	0.70	1.70		0.020	0.010		1.20	1.00	0.65	0.050	0.0005-0.0006	0.010	0.65
NM550	0.38	0.70	1.70		0.020	0.010		1.20	1.00	0.70	0.050	0.0005-0.0006	0.010	0.72
NM600	0.38	0.70	1.90		0.020	0.010		1.50	1.00	0.70	0.050	0.0005-0.0006	0.010	0.76
Material				Tensile MPA			Elongation %				Impact energy -20ºC		HBW
NM300				≥1000			≥14				≥24		270-300
NM360				≥1100			≥12				≥24		330-390
NM400				≥1200			≥10				≥24		370-430
NM450				≥1250			≥7				≥24		420-480
NM500				≥1250			≥7				≥24		≥470
NM550				≥1250			≥7				≥24		≥530
NM600				≥1250			≥7				≥24		≥570
