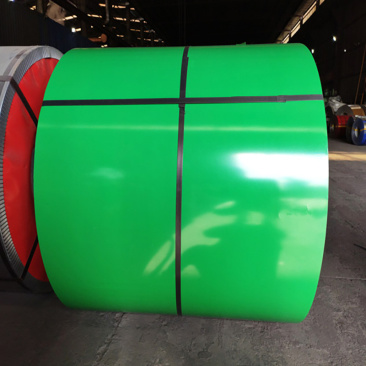

Colored coated coil for roofing

Pre-painted galvalum steel coil/sheet or PPGL is based on galvalume steel coils/sheet and features: excellent aesthetic appeal, formability, corrosion resistance, strong adhesion and longer service time.

Product information

PPGL is pre-painted galvalume steel, also known as Aluzinc steel. The galvalume & aluzinc steel coil uses the cold-rolled steel sheet as a substrate and solidified by 55% aluminum, 43.4% zinc and 1.6% silicon at 600 °C. It combines the physical protection and high durability of aluminum and the electrochemical protection of zinc. It is also called aluzinc steel coil. Advantage: Strong corrosion resistance, 3 times that of galvanized steel sheet. The density of 55% aluminum is smaller than the density of zinc. When the weight is the same and the thickness of the plating layer is the same, the area of the galvalume steel sheet is 3% or larger than that of the galvanized steel sheet.

Product Specifications — Prepainted Galvalume Steel Coil

Product Name Prepainted Galvalume Steel Coil
Technical Standard AISI, ASTM, BS, DIN, GB, JIS3312
Material CGCC, DX51D, Q195, Q235
Thickness 0.13 – 1.20 mm
Width 600 – 1250 mm
Zinc Coating AZ30–AZ170, Z40–Z275
Color All RAL Colors or According to Customer’s Requirement / Sample
Coil ID 508 / 610 mm
Top Side Coating Top Paint: PVDF, HDP, SMP, PE, PU
Primer Paint: Polyurethane, Epoxy, PE
Back Side Coating Back Paint: Epoxy, Modified Polyester
Surface Glossy (30%–90%) or Matt
Coil Weight 3 – 8 Tons per Coil
Package Standard Export Package or Customized
Hardness Soft (Normal), Hard, Full Hard (G300–G550)
T Bend ≥ 3T
Reverse Impact ≥ 9J
Pencil Hardness > 2H

More details

pgi/ppgl(prepainted galvanized steel/prepainted galvalume steel)is coated with organic layer,which provides higher anti-corrosion property and a longer lifespan than galvanized steel sheet. The base metal for ppgi/ppgl consist of cold-rolled steel,hot dip galvanized steel,electro-galvanized steel and got dip galvalume steel. the coating material is as following :polyester ,silicon modified polyester,polyvinylidene fluoride,high-durability polyester ,etc.
