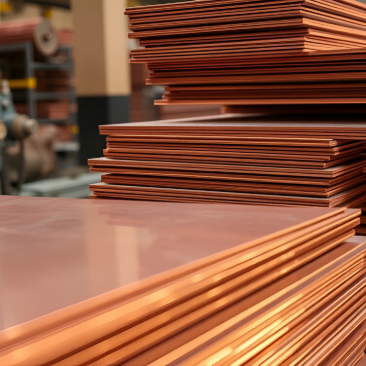

Copper plate is generally divided into thin plate and medium-thick plate, with the thickness of 0.1mm-3.0mm, and the thickness of medium-thick plate is 3.0mm-200mm. The size can be customized.
Product Describe
Copper plate is generally divided into thin plate and medium-thick plate, with the thickness of 0.1mm-3.0mm, and the thickness of medium-thick plate is 3.0mm-200mm. The size can be customized.
Copper plate is a kind of roof and curtain wall material with high stability and low maintenance, which is environmentally friendly, safe to use, easy to process and highly corrosion resistant.
1) The yield strength and elongation of the copper sheet are inversely proportional. The hardness of the processed and bent copper sheet increases extremely high, but can be reduced by heat treatment.
2) Among all metal materials used in construction, copper has the best extensibility, and has great advantages in adapting to architectural modeling.
3) The copper plate is not limited by the processing temperature, and is not brittle at low temperature. When the melting point is high, oxygen blowing and other hot melt welding methods can be used.
4) Fireproof, non-combustible material.
|
Item |
Copper plate /copper sheet |
|
Standard |
JIS H3250-2006,ASTM B152M,GB/T2040-2008,etc |
|
Material |
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc |
|
Size |
Thickness:0.1mm~500mm Width:4mm~2500mm Length:1m~12m or as required. |
|
Hardness |
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
|
Surface |
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
