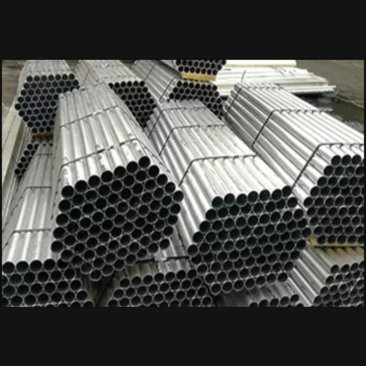

Aluminum Round Pipe

Product introduction

Aluminium Pipe can be produced in two types drawn and extruded aluminum pipe. Extruded aluminum pipe is stocked in both seamless and structural (port-hole die). Aluminium pipe is used in pressure or structural application. These Aluminium Pipe are light weight, excellent corrosion resistance, and the ability to transmit heat rapidly are only a few of the benefits of aluminum pipes. There are 2 types of Aluminium Pipe: 1) Aluminium Extruded Pipe: Aluminium Extruded Pipe, formed by hot extruding through a die, is available as a seamless or structural grade product. 2) Aluminium Drawn Pipe: Aluminium Drawn Pipe is a seamless extruded Pipe is brought to final size by drawing through a die.

Product introduction

Aluminium Alloy	ASTM B210, ASTM B234, ASTM B241, ASTM B483; GB/T 6893-2000, GB/T 4437-2000: JIS H4080-2006
Aluminium Pipe American Specifications:	ASTM B210 drawn, ASTM B241 extruded, AMS 4173, AMS 4080, AMS 4082, AMS4083, WW-T-700/6
Aluminium Pipe British Specifications	H20, HE 20
Material	1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc.
Aluminium Pipe Standard	ASTM, ASME, AMS, ASTM B210M, GB/T 3191, JIS H4040, ASTM B210, AMS QQ-A-200/9
Aluminium Pipe Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Pipe Form	Aluminium extruded, seamless, drawn and coiled Pipe in Black & Bright Finish
Aluminium Pipe Sizes	1/8″ – 16″ (3mm – 2500mm) OD .020″ – 2″ (.2mm – 150mm) wall (1m-12m) Length
Machinability	Fair
Weldability	Good
Corrosion Resistance	Good
Aluminium Pipe	Bright, Polish & Black
Aluminium Pipe Surface	Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sand blasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved
Surface treatment	Nature, Black painting, Transparent oil, rust-proof black oil or hot-dip galvanized
Aluminium Pipe Delivery Time	10-30 days after receiving the prepayment
Aluminium Pipe Packaging Details	Export standard package: bundled wooden box, suit for all kinds of transport or be required.
ASTM B210 Alloy Pipe Outer packing	Export standard, wooden pallet
Here are 6 different types of finishes for extruded aluminum Pipe:	Anodizing Powder Coating Liquid Coatings Chemical Finishes Mechanical Finishes Pretreatment
Applications	Bicycle Parts, aircraft ducting, wheelchair frames, telescopes, machined bushes, air cylinders

Standard Dimensions of Aluminium Pipe

6 mm Aluminum Pipe
8 mm Aluminum Pipe
9 mm Aluminum Pipe
10 mm Aluminum Pipe
12 mm Aluminum Pipe
12.7 mm Aluminum Pipe
14 mm Aluminum Pipe
16 mm Aluminum Pipe
18 mm Aluminum Pipe
19.05 mm Aluminum Pipe
20 mm Aluminum Pipe
22 mm Aluminum Pipe
24 mm Aluminum Pipe
25.4 mm Aluminum Pipe
27 mm Aluminum Pipe
30 mm Aluminum Pipe
31.75 mm Aluminum Pipe
33 mm Aluminum Pipe
36 mm Aluminum Pipe
38.1 mm Aluminum Pipe
39 mm Aluminum Pipe
42 mm Aluminum Pipe
45 mm Aluminum Pipe

50 mm Aluminum Pipe
55 mm Aluminum Pipe
60 mm Aluminum Pipe
65 mm Aluminum Pipe
70 mm Aluminum Pipe
75 mm Aluminum Pipe
80 mm Aluminum Pipe
90 mm Aluminum Pipe
100 mm Aluminum Pipe
110 mm Aluminum Pipe
120 mm Aluminum Pipe
130 mm Aluminum Pipe
140 mm Aluminum Pipe
150 mm Aluminum Pipe
160 mm Aluminum Pipe
165 mm Aluminum Pipe
180 mm Aluminum Pipe
190.5 mm Aluminum Pipe
210 mm Aluminum Pipe
228 mm Aluminum Pipe
250 mm Aluminum Pipe
305 mm Aluminum Pipe

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Aluminium Round Pipe Weight Chart

Product	Diameter	Thickness	Weight (Kg/m)
Aluminium Round Pipe	10 mm	0.7 mm	0.055
Aluminium Round Pipe	6 mm	0.8 mm	0.035
Aluminium Round Pipe	8 mm	0.8 mm	0.049
Aluminium Round Pipe	10 mm	0.8 mm	0.062
Aluminium Round Pipe	12.7 mm (1/2″)	0.8 mm	0.081
Aluminium Round Pipe	19 mm	0.9 mm	0.138
Aluminium Round Pipe	6 mm	1 mm	0.042
Aluminium Round Pipe	8 mm	1 mm	0.059
Aluminium Round Pipe	9.5 mm (3/8″)	1 mm	0.072
Aluminium Round Pipe	11 mm	1 mm	0.085
Aluminium Round Pipe	12 mm	1 mm	0.093
Aluminium Round Pipe	12.7 mm (1/2″)	1 mm	0.099
Aluminium Round Pipe	14 mm	1 mm	0.110
Aluminium Round Pipe	16 mm	1 mm	0.127
Aluminium Round Pipe	19 mm	1 mm	0.153
Aluminium Round Pipe	22 mm	1 mm	0.178
Aluminium Round Pipe	25 mm	1 mm	0.204
Aluminium Round Pipe	28 mm	1 mm	0.229
Aluminium Round Pipe	32 mm	1 mm	0.263
Aluminium Round Pipe	40 mm	2 mm	0.645
Aluminium Round Pipe	50 mm	2 mm	0.814
Aluminium Round Pipe	70 mm	2 mm	1.154
Aluminium Round Pipe	90 mm	2 mm	1.493
Aluminium Round Pipe	114.3 mm (4½″)	2 mm	1.905
Aluminium Round Pipe	45 mm	3 mm	1.069
Aluminium Round Pipe	60 mm	3 mm	1.450
Aluminium Round Pipe	70 mm	3 mm	1.705
Aluminium Round Pipe	90 mm	5 mm	3.605

Aluminium Square Pipe Weight Chart

Product	Side	Thickness	Weight (Kg/m)
Aluminium Square Pipe	16 mm	0.7 mm	0.116
Aluminium Square Pipe	16 mm	0.9 mm	0.147
Aluminium Square Pipe	19 mm	0.9 mm	0.176
Aluminium Square Pipe	12.5 mm	1 mm	0.124
Aluminium Square Pipe	16 mm	1 mm	0.162
Aluminium Square Pipe	19 mm	1 mm	0.194
Aluminium Square Pipe	20 mm	1 mm	0.205
Aluminium Square Pipe	25 mm	1 mm	0.259
Aluminium Square Pipe	12 mm	1.5 mm	0.170
Aluminium Square Pipe	20 mm	1.5 mm	0.300
Aluminium Square Pipe	30 mm	1.5 mm	0.462
Aluminium Square Pipe	40 mm	1.5 mm	0.624
Aluminium Square Pipe	50 mm	1.5 mm	0.786
Aluminium Square Pipe	20 mm	2 mm	0.389
Aluminium Square Pipe	40 mm	2 mm	0.821
Aluminium Square Pipe	60 mm	2 mm	1.253
Aluminium Square Pipe	65 mm	2 mm	1.361
Aluminium Square Pipe	100 mm	2 mm	2.117

Aluminium Rectangular Pipe Weight Chart

Product	A	B	Thickness	Weight (Kg/m)
Aluminium Rectangular Pipe	30 mm	15 mm	1.5 mm	0.340
Aluminium Rectangular Pipe	40 mm	20 mm	1.5 mm	0.462
Aluminium Rectangular Pipe	50 mm	25 mm	1.5 mm	0.583
Aluminium Rectangular Pipe	60 mm	40 mm	2 mm	1.037
Aluminium Rectangular Pipe	65 mm	30 mm	1.5 mm	0.745
Aluminium Rectangular Pipe	80 mm	30 mm	1.5 mm	0.867
Aluminium Rectangular Pipe	80 mm	20 mm	2 mm	1.037
Aluminium Rectangular Pipe	85 mm	30 mm	1.8 mm	1.083
Aluminium Rectangular Pipe	100 mm	50 mm	4 mm	3.067

Standards and Specifications by Country

Region	Specification	Alloy	Temper
Europe	EN 2089/2395	2014A	T6(T62)/T4(T42)
Europe	EN 2087/2088	2014A clad	T6(T62)/T4(T42)
France	AIR 9048.010	2014	F(T42)/T4
Germany	W.-Nr. 3.1254	2014A	T4, T6
UK	BS L16/17	1200	H4/O
USA	AMS QQ-A-250/3	2014 clad	O, T4, T6

Aluminium Pipe Equivalent Grades

China	USA	Britain	Germany	ISO	French
19501	1050	1E	E-Al 99.5	Al-99.5	1050A
19700	1070	–	Al-99.7	Al-99.8	–
24345	2014	H15	Al-Cu-Si	AlCu-4MgSi	–
31000	3003	N3	Al-Mn	Al Mn 1	3003
65032	6061	H20	Al-Mg-Si Cu	Al-Mg-Si	–
64430	6082	H30	Al-Mg-Si 1	Al-Si-1 Mg Mn	6082

Aluminium Pipe Chemical Composition

Alloy	Si %	Mg %	Mn %	Cu %	Fe %	Al %
EN AW-1050 A	0.25 Max	0.05 Max	0.05 Max	0.05 Max	0.40 Max	99.5 Min
EN AW-1070 A	0.20 Max	0.03 Max	0.03 Max	0.03 Max	0.25 Max	99.7 Min
EN AW-6061	0.40–0.80	0.80–1.20	0.15 Max	0.15–0.40	0.70 Max	Remainder
EN AW-6082	0.70–1.30	0.60–1.20	0.40–1.00	0.10 Max	0.50 Max	Remainder

Aluminium Pipe Mechanical Properties

Alloy	Temper	UTS (MPa)	Yield Strength (MPa)	Elongation %
EN AW-1050 A	O	60–95	20	23
EN AW-2011	T6	310	230	6
EN AW-2024	T3	395	290	6
EN AW-6061	T6	260	240	6
EN AW-6082	T6	290	250	6

Aluminum Alloy Heat Treatment Temper Designations

Code	Description
F	As Fabricated
O	Annealed
H	Strain Hardened
W	Solution Heat Treated
T	Solution Heat Treated & Aged
T6	Solution heat treated then artificially aged
T7	Solution heat treated then overaged/stabilized
T8	Solution heat treated, cold worked, artificially aged

H Temper Strain Hardening Codes

Code	Description
H1	Strain hardened only
H2	Strain hardened and partially annealed
H3	Strain hardened and stabilized
H4	Strain hardened and lacquered or painted
